- Design :Semi Auto
- Shifting Method Horizontal :Manual
- Shifting Method Vertical :Manual
- Lens/Load :2
- Lens/HR:20
- Total Station :9
- No.of Cleaning Tanks:4
- No.of Varnish :1
- Varnish Volume (Ltrs.) :2
- Varnish tank Operation :Auto
- Electrical Load :1Ph, 230Volts, 5kw
- Machine Dimension :1650 * 800 * 2000

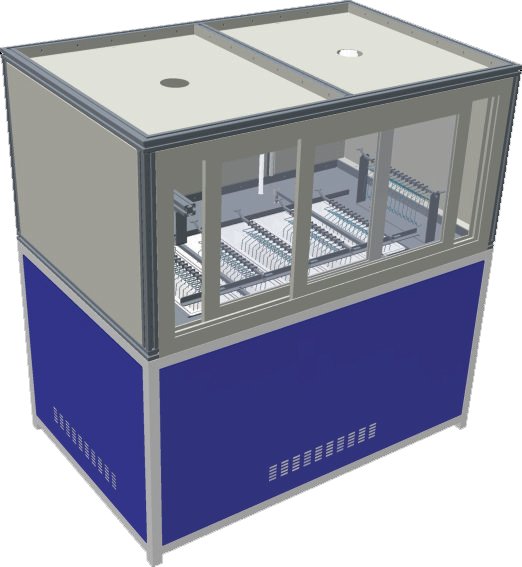

HCM 400
- Design :Fully Automatic Servo Driven
- Shifting Method Horizontal :Single Shift Servo
- Shifting Method Vertical :Induction VFD
- Lens/Load :6
- Lens/HR:50
- Total Station :15
- No.of Cleaning Tanks:6
- No.of Varnish :2
- Varnish Volume (Ltrs.) :4.5
- Varnish tank Operation :Independent
- Electrical Load :3Ph, 415Volts, 10kw
- Machine Dimension :3500 * 1200 * 2000

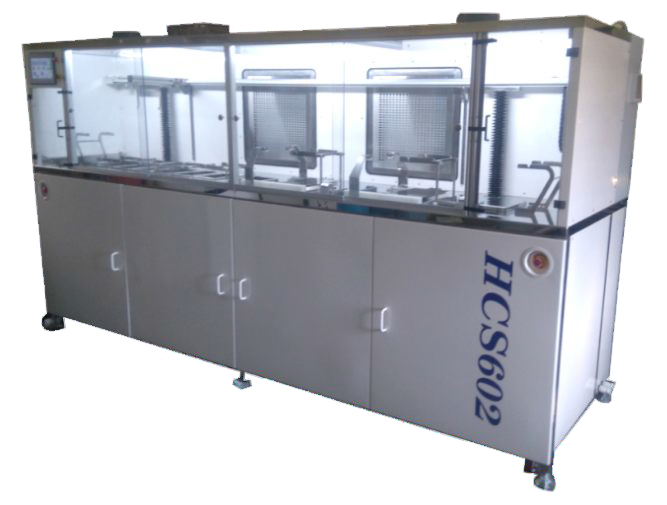

HCS 602
- Design :Fully Automatic
- Shifting Method Horizontal :Mass Transfer Pneumatic
- Shifting Method Vertical :Mass Transfer Pneumatic
- Lens/Load :6
- Lens/HR:60
- Total Station :15
- No.of Cleaning Tanks:6
- No.of Varnish :2
- Varnish Volume (Ltrs.) :4.5
- Varnish tank Operation :Independent
- Electrical Load :3Ph, 415Volts, 8.5kw
- Machine Dimension :3200 * 1200 * 2000

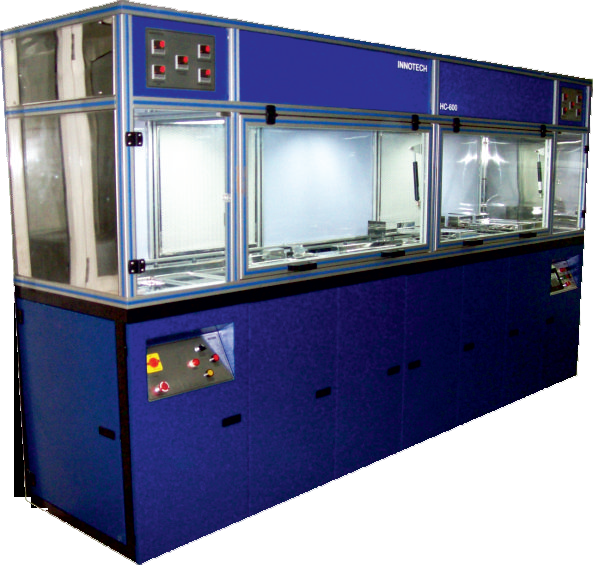

HC 600
- Design :Fully Automatic Servo
- Shifting Method Horizontal :Single Shift Servo
- Shifting Method Vertical :Single Shift Servo
- Lens/Load :6
- Lens/HR:70
- Total Station :19
- No.of Cleaning Tanks:8
- No.of Varnish :3
- Varnish Volume (Ltrs.) :5
- Varnish tank Operation :V2 & V3 are Combined
- Electrical Load :3Ph, 415Volts, 20kw
- Machine Dimension :3200 * 1400 * 1600

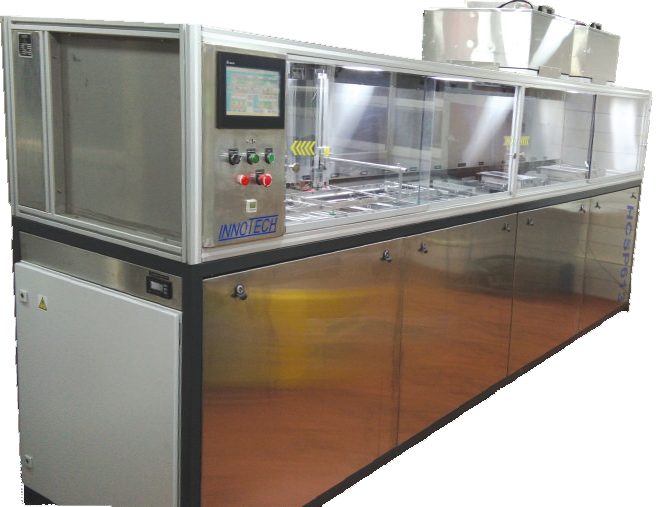

HCSP 613
- Design :Fully Automatic Servo
- Shifting Method Horizontal :Mass Transfer Pneumatic
- Shifting Method Vertical :Mass Transfer Pneumatic
- Lens/Load :8
- Lens/HR:80
- Total Station :16
- No.of Cleaning Tanks:7
- No.of Varnish :2
- Varnish Volume (Ltrs.) :5.5
- Varnish tank Operation :Independent
- Electrical Load :3Ph, 415Volts, 10kw
- Machine Dimension :4200 * 1200 * 2000

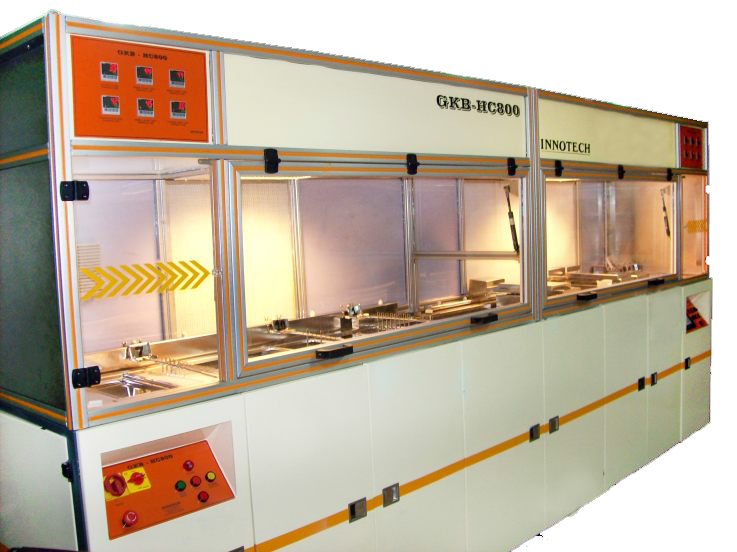

HC 800
- Design :Fully Automatic Servo
- Shifting Method Horizontal :Single Shift Servo
- Shifting Method Vertical :Single Shift Servo
- Lens/Load :14
- Lens/HR:100
- Total Station :20
- No.of Cleaning Tanks:9
- No.of Varnish :3
- Varnish Volume (Ltrs.) :6
- Varnish tank Operation :V2 & V3 are Combined
- Electrical Load :3Ph, 415Volts, 20kw
- Machine Dimension :4800 * 1400 * 2200

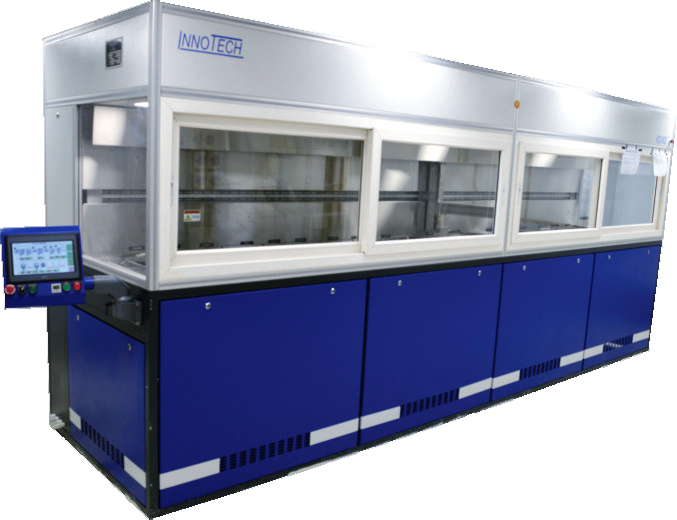

HCSP 1403
